eEGG Resource Center

Product Features

The functions of the eEGG vary depending on the model. Below is a list of supported functions for each model:

Model	Product Name	Video Player	Image Player	Music Player	iRadio	Games	Voice Control	AI Dialogue	Mobile File Transfer
eEGG5	5cm eEGG	✔️	✔️	❌	❌	✔️	❌	❌	❌
eEGG6	6cm eEGG	✔️	✔️	✔️	✔️	✔️	❌	✔️	✔️
eEGG7	7cm eEGG	✔️	✔️	✔️	✔️	✔️	❌	✔️	✔️
eEGG7-AI	7cm AI eEGG	✔️	✔️	✔️	✔️	❌	✔️	✔️	✔️

Note: The product model will be used directly as a designation for different products below.

Operation Guide

Power On

There is a silicone power button on the top of the eEGG. Press this button firmly to power on the device.

⚠️ Caution: After receiving the eEGG, please fully charge the device before use.

Shake-and-Do Operation

The eEGG has a built-in G-sensor and can be used to achieve different functions by swinging it. Gently shake the eEGG several times, then stop and wait for about 1 second. The device will recognize the number of shakes and execute the corresponding function:

Operation	Function	Description
Shake 1 time	Next/+	Switch to the next menu item; Play the next media file; Increase the volume.
Shake 2 times	Run/Prev./-	Execute the selected menu or function; Play the previous file; Decrease the volume.
Shake 3 times	Open Menu	Display the menu.
Shake 4 times	Mode/Volume	Shaking 4 times opens a pop-up menu for adjusting volume/playback mode;
Shake 5 times	Power Off	After powering off, press the button on the eEGG to power it on.

Charging

This device can be charged using various chargers with a Type-C interface. Under normal circumstances, the internal battery can be fully charged within 90 minutes.

If the device has been left unused for an extended period, causing over-discharge of the internal battery, please plug in the charger for 10 minutes before trying to turn the device on.

If the device is not used for a long time, it is recommended to fully charge it at least once every two months.

Function Menu

Note*: The 7cm AI eEGG does not have mini-game functionality; the icon will be displayed as the AI function icon.

Pop-up Menu

Playback Modes:

Playlist Loop

Single Loop

Shuffle

Play Lock

Volume:

Mute

Volume 1

Volume 2

Volume 3

Volume 4

Volume 5

Volume 6

Volume 7

Battery Level:

Charging

Low Battery

WiFi Configuration

Download ESP-Touch app:

ESP-Touch for Android ESP-Touch for iOS

Start "WiFi config" on eEGG:

For eEGG5, flick the device 3 times to display the menu, then flick once to switch to the next menu item, until you switch to the WiFi menu, then flick twice.
For eEGG6, eEGG7, and eEGG7-AI, flick the device 3 times to display the menu, then flick it once to switch to the next menu item, until you switch to the WiFi menu, then flick it twice.

Connect your phone to a 2.4G WiFi network.

Run the ESP-Touch app on your phone, and input your WiFi password, leave the AES Password field blank (do not enter anything).

Click "Confirm" button and wait for ESP-TOUCH to indicate successful configuration.

⚠️ Note 1: The device can only work in 2.4G WiFi mode. Please ensure your router supports 2.4G WiFi.

⚠️ Note 2: If network configuration fails on the first try, please try more several times.

Alternative Method: Edit config.ini File

Connect the eEGG device to your computer via USB cable.

Find the config.ini file in the ".set" directory of your eEGG device.

Note: The .set folder is hidden. Enable "Show hidden files" in your file explorer.

Open the config.ini file with a text editor and modify the wifi_SSID and wifi_password entries:

[SETTINGS]
default_feature = 0        ; Default power-on function
turnoff_confirm = 0        ; Power-off confirmation
shutdown_time = 60         ; Auto power-off time (minutes)
sensitivity = 4            ; Shake sensitivity (1-5)
bat_percent = 0            ; Show battery percentage
usbmsc_encrypt = 0         ; USB MSC encryption
wifi_ssid = yourWiFiSSID   ; Your WiFi SSID
wifi_password = 12345678   ; Your WiFi password
[END]

Manager the Files in eEGG by the Webserver build-in Device

Launch Webserver of eEGG

For eEGG5Shake 3 times to display the menu, then shake once to switch menu item until the WiFi menu, then shake twice to enter the WiFi config. Shake once again to enter Webserver
For eEGG6、eEGG7 and eEGG7-AIShake 3 times to display the menu, then shake once to switch menu item until the WiFi menu. Then shake twice to enter the WiFi menu. Shake it again to select the item with the small computer icon (), then shake twice to enter Webserver.

Note: The device will display a QR code, below which the device's SSID , IP address and RSSI of Webserver.

Open your computer's browser (make sure your computer's Wi-Fi network is on the same network as the device), and enter the device's IP address (usually 192.168.x.x).

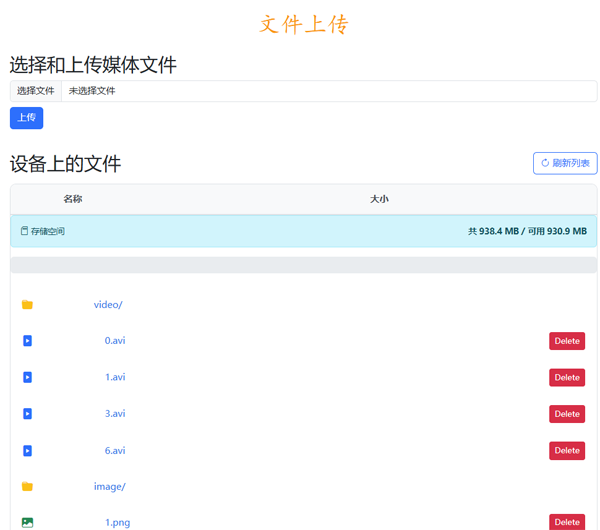

WebServer_page

Follow the prompts to manage files on the device (upload files to or delete files from the device).

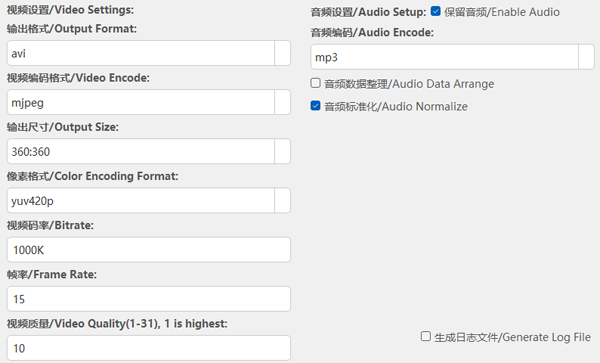

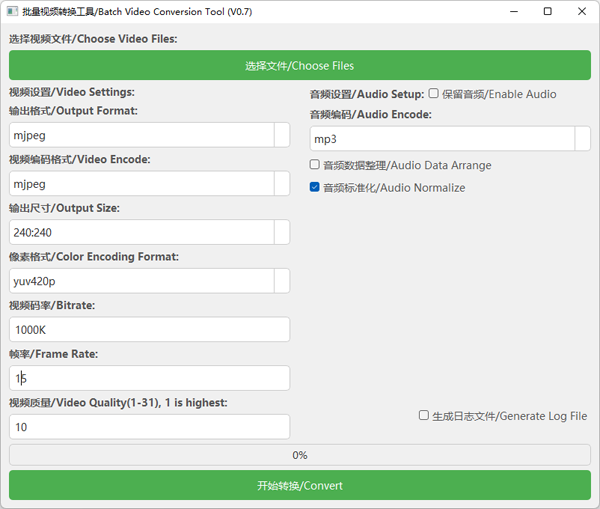

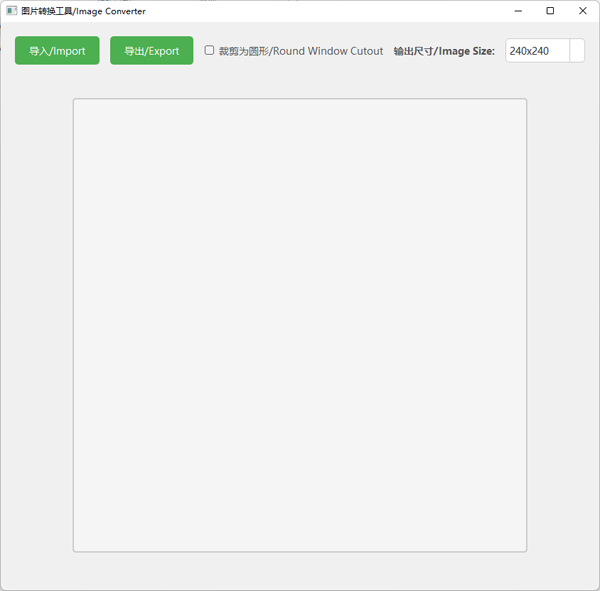

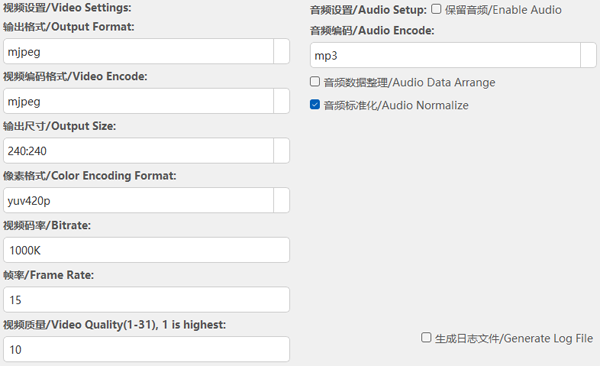

⚠️ Note: Before uploading files to the device, you need to convert video/image files to a format that the device can recognize using a file conversion tool.

Transferring Files via Mobile Phone

Download and install the "eEGG File Conversion and Transfer Assistant" APP to your mobile phone.

Download APK

Enter mobile file transfer mode on the eEGG device.

Connect your phone to the same WiFi network (SSID) as your eEGG device.

Open the mobile app and select the eEGG model in the settings menu.

Scan the QR code on the eEGG with the mobile app to connect.

Select video, image, and music files from your phone and transfer them to the eEGG.

⚠️ Important Notes:

eEGG File Converter and Transfer Assistant will automatically convert image and video formats before transferring files
Only supports landscape format videos no longer than 60 seconds
Limit video resolution to 1920x1080 and frame rate to 30fps
Test network connection before transferring files
